Fieldpiece now available at Freedom Air Conditioning!

Feb-2025

We're pleased to announce that we are now stocking Fieldpiece HVACR tools!

The entire Fieldpiece family of products are tough, versatile, innovative and can handle the increasing demands of working in HVACR. That’s because of something they all have in common – they were all designed with the idea that every HVACR professional in the field deserves the best tools possible.

Need to recover refrigerant lightning fast? Want to pull a complete vacuum with confidence? Dreaming about measuring pressures without all those cumbersome hoses? Fieldpiece, has you covered.

If you'd like more information, a quote or to place an order, please don't hesitate to get in touch with our sales team using the details below. Alternatively, come on into our Southampton trade counter to check out the range for yourself!

02380 653 283 | sales@freedomac.co.uk

---

The Freedom AC team recommends...

DR58EU

Refrigerant Leak Detector (Heated Diode)

Package includes:

1x Heated Diode Refrigerant Leak Detector 5x Replacement Filtered Tips - RFT6 1x Rugged Case

Our price: £236.25+VAT*

Specifications

Click here to expand

Sensor Type	Heated Diode
Refrigerants	Detects CFS, HFC, CFC, HFO and blends
Sensor Life	300 hours
Display Type	LCD (backlit for indoor use)
Detection Feedback	Numerical leak size indicator, bar graph, audio speaker and lighted tip
Water Resistance	Certified IP54
Body Type	Compact, rugged overmoulded
Battery Type	USB-C Rechargeable Lithium-ion
Battery Life	18 hours

*******************************************************************************************************************

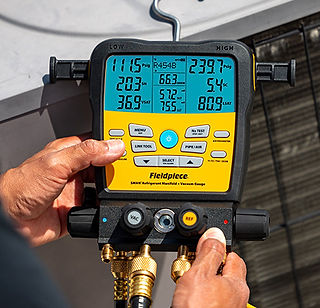

SM480VINT

SMAN® 4-Port Digital Refrigerant Manifold and Micron Gauge (A3 Ready)

Package includes:

1x SM480VINT SMAN Refrigerant Manifold 2x TC24 Type K Pipe Clamp Thermocouples

1x ATA1 Type K Bead Thermocouple w/Clip 1x ANC11 Padded Drawstring Case

Our price: £473.75+VAT*

Specifications

Click here to expand

Refrigerants	70+ Including A2Ls (Update future refrigerants via USB)
Wireless Range	350 feet (Line of sight). Obstructions may affect distance
Connections	3x standard 1/4" 1x standard 3/8" male flare fitting
Display Type	LCD (backlit blue for indoor use)
Measurements	Pressure: 0-40 BarVacuum: 29" HgV to 0" HgV.Microns: 50-10000Temperature: -46°C to 125°C
Water Resistance	Certified IP54
Body Type	Impact-resistant, heavy-duty casing with hanging hook
Battery Type	6 x AA alkaline
Battery Life	350 hours typical (no backlight or micron guage)

*******************************************************************************************************************

VP87

RunQuick™ 8CFM Vacuum Pump (230V, A2L compatible)

Package includes:

1x VP87 Vacuum Pump 2x 240ml Vacuum Pump Oil 1x Appropriate plug based on country

Our price: £566.25+VAT*

Specifications

Click here to expand

Flow Rate, Nominal	8 CFM
Pump Body	Cast Iron
Motor	3/4 HP DC Motor
Weight	12.25 kg
Intake Port	4 in-line: (1x) 1/4”, (2x) 3/8”, (1x) 1/2”
RunQuick™ Oil Change System	2x 240ml (8oz) bottles of oil
Dimensions	201mm x 296mm x 406mm
Backlit oil reservoir	Yes
Gas ballast	Yes
Next Gen Refrigerants	A2L certified

*******************************************************************************************************************

MR45INT

Recovery Machine (230V, A2L Ready)

Package includes:

1x MR45 Recovery Machine 1x Appropriate plug based on country

Our price: £945.00+VAT*

Specifications

Click here to expand

Display	2x 10000 count LCD with status messages
Backlight	Blue
Measurement Rate	3.3 times per second, nominal
Auto-Stop Levels	0 psig (default), -10 "Hg, -20" Hg
Input Port Pressure Sensor Range	-30” Hg to 600 psig (-76 cmHg to 41 Bar)
Output Port Pressure Sensor Range	-30” Hg to 600 psig (-76 cmHg to 41 Bar)
High Pressure Cut-off	558 psig, nominal (38 Bar)
Resolution and Units	1 psig (1” Hg), 0.05 bar (2 cmHg),0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
Pressure Sensor Accuracy	± 0.5 “ Hg (Vacuum)± (0.6% of reading +2 psig)
Final Recovery Vacuum	14.9” Hg
Compressor	Twin cylinder reciprocating (oil-less)
DC Motor	1 HP (variable smart speed)
Power Source	230 VAC@ 50/60 Hz 1 phase
Max Current Draw	7.0 AAC
Valve	Single dual-route ball valve
Input Port Filtration	9 mm mesh screen, stainless
Dimensions	376 mm x 250 mm x 344 mm
Weight	10 kg
Operating Environment	0°C to 50°C
Storage Environment	-20°C to 60°C
A2L ready including R32	Yes

---

*Product information and prices shown above are subject to change without notice. Freedom Air Conditioning also reserve the right to change pricing and product details at any time without notice. Carriage charges may apply depending on delivery address and urgency of order. Please contact our sales team for confirmation. EAOE.
